    Neck shape is roughed on a pin router using this jig

    [​IMG]


    Like that

    [​IMG]



    The innitial cutting is very close to the final

    [​IMG]

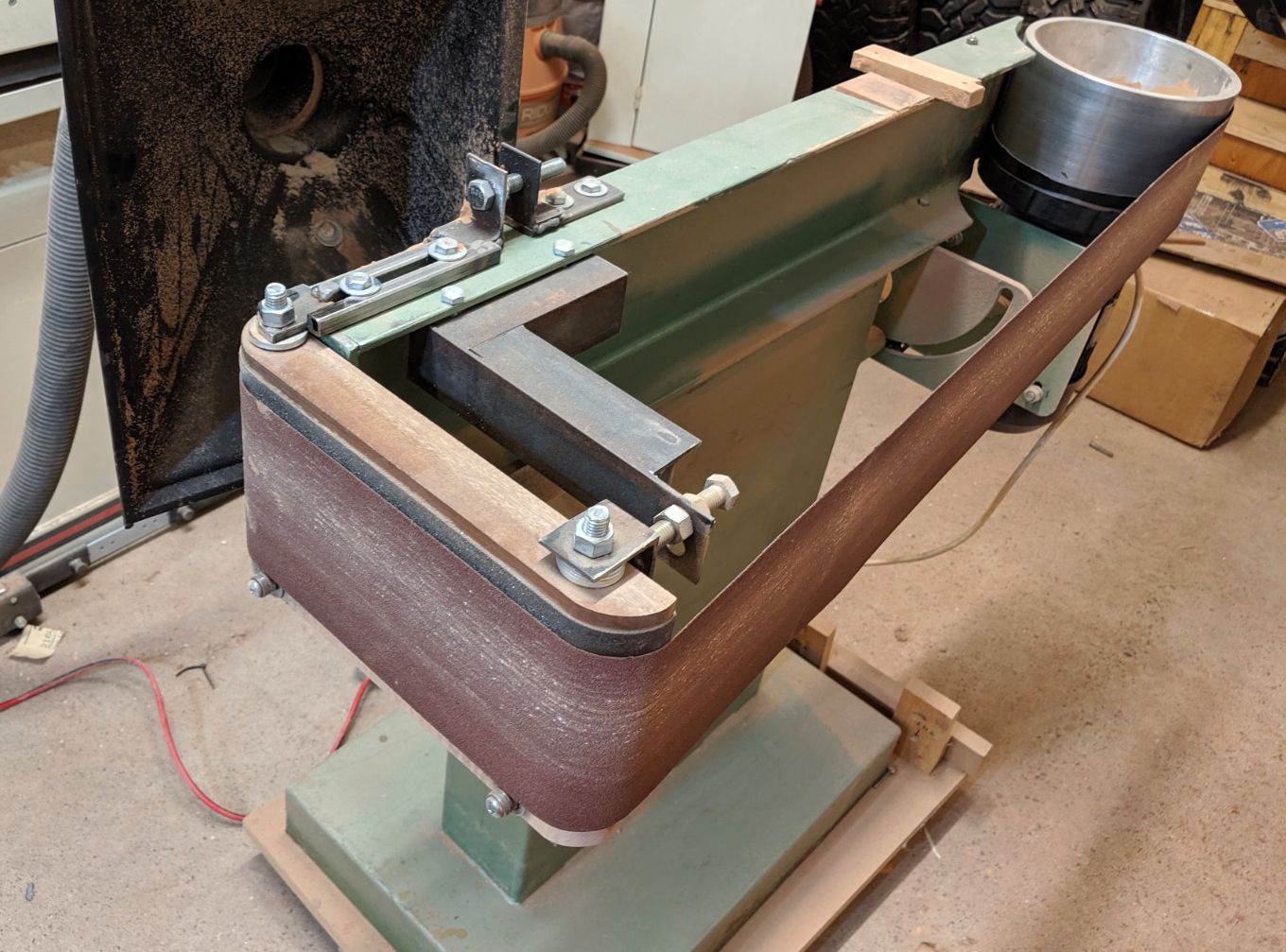

    but some more shaping and finalizing is required which is mostly done on this combination face/slack belt sander

    [​IMG]

    Last edited: May 31, 2019
    Zepfan likes this.
  2. preeb

    preeb Poster Extraordinaire Vendor Member

    Age:
    53
    Posts:
    6,626
    Joined:
    Sep 10, 2008
    Location:
    Sonoran Desert
    The face block sander is used to create the headstock and heel transitions

    [​IMG]

    [​IMG]

    [​IMG]



    and the headstock back (as well as thicknessing).
    The thicknessing initial size is 0.6" and I will finalize later..

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]



    Note the different color of the Cuban Mahogany being densier and darker, here against a Khaya Bone neck

    [​IMG]



    The profile (or neck shape) is done on the slack belt area.
    This area is very flexible and "giving" but I still do it very carefully and try not to sand the skin off my arms.
    I learned this from Marvin Lamb who showed me how he did the 50's Gibson LP's necks back in the day when I met him at the Kalamazoo factory a few years ago.
    A lot of the "right" 50's shape and feel comes from this irregular method and it is not as straight and perfect as the modern rolling method which is... well... too straight (-;
    A big part of the old necks feel comes from them not being "perfect".

    [​IMG]



    Only issue is that the sanding is done across the grain leaving horizontal marks

    [​IMG]

    [​IMG]



    and I need to manually sand it with the grain to remove the cross grain scratches that may become an issue when finishing the guitar later on..

    [​IMG]

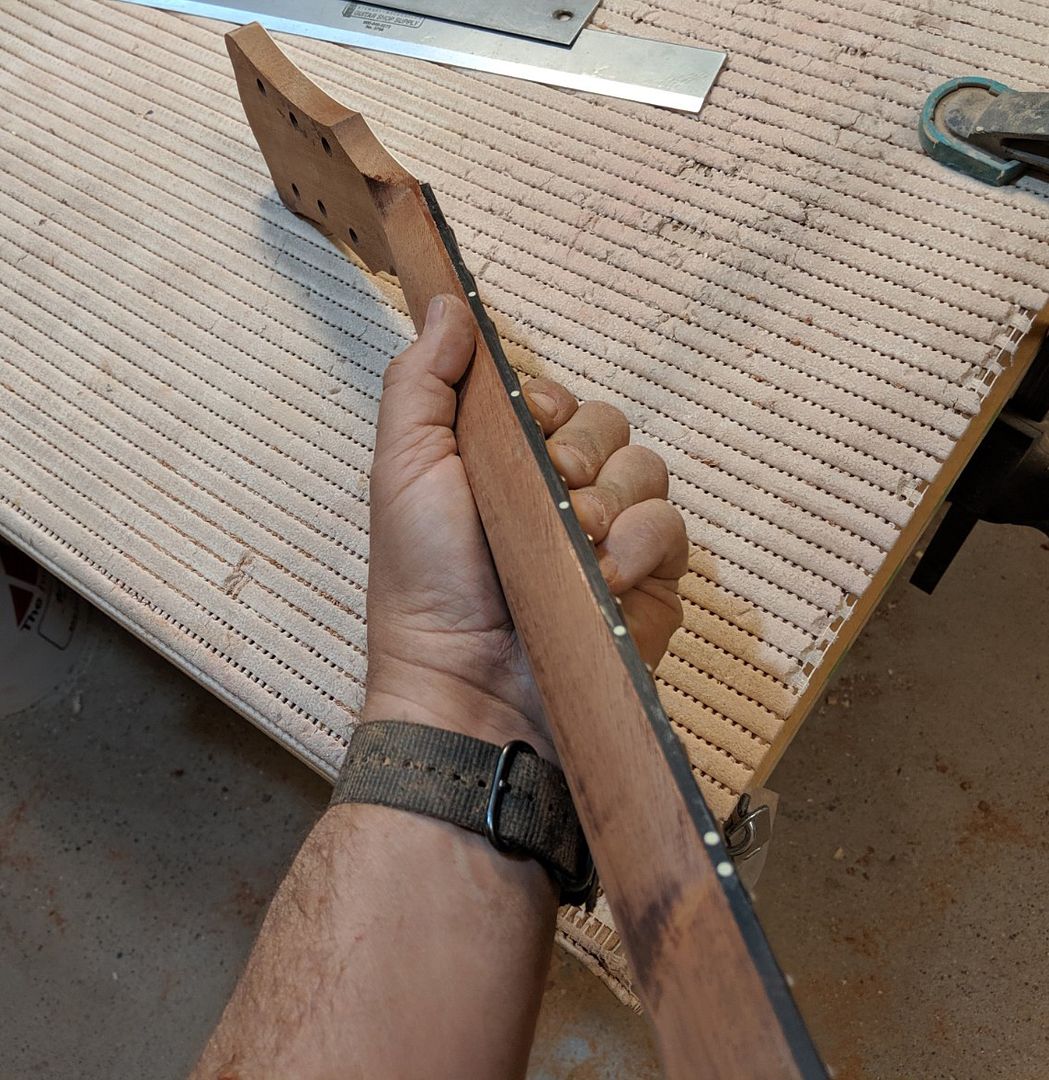

    Once the neck is shaped I tune the headstock tap tone. The way to do this is by holding (pinching) the neck at the nut location and tapping the headstock.

    [​IMG]


    A big part of the tone is coming from the headstock which is basically a plate at the end of the neck.. I slowly remove material from the back until I get the desired tone and level.
    For the Lyra I'm going for a lower and deeper note to match with the semi hollow body to emphasize the warmth and depth of the rich lows.
    I ended up at about 0.5" which is 0.1" thinner than the Bone line spec (0.6") and you can see the difference here

    [​IMG]


    Looking nice...

    [​IMG]

    [​IMG]

    Last edited: Jun 1, 2019
    BluesBlooded and Zepfan like this.
  3. preeb

    preeb Poster Extraordinaire Vendor Member

    Age:
    53
    Posts:
    6,626
    Joined:
    Sep 10, 2008
    Location:
    Sonoran Desert
    Next step is exposing the trussrod adjustment access hole.
    I manually cut the step in the tenon. From the board end down first

    [​IMG]


    and then bellow the hole level

    [​IMG]


    Like that.. the cavity will accept the brass ring that will hold the spoke wheel rod adjuster

    [​IMG]


    At this point I check the neck again for any warping or irregularities after the shaping and all... and both necks are straight as an arrow.
    Time to glue them to the bodies and I will be using hide glue for that jointing.
    Kaking sure there are no gaps and that all the glue has squeezed out without excessive tightening of the clamp

    [​IMG]

    [​IMG]


    I let it sit horizontally for a few minutes to avoid the glue from dripping from the end of the moprtise gap..

    [​IMG]


    and then hang them for at least 48 hours to fully cure and to allow all the moisture to evaporate (no need for more than 48 hours in Arizona (-; )

    [​IMG]

    [​IMG]



    Next week I will continue with the PU cavities and the heel area shaping... Shabat Shalom!
