Nashville Routing Template

Discussion in 'Tele-Technical' started by PJ55, Jun 29, 2012.

  1. Jun 29, 2012 #1
    PJ55

    PJ55 Poster Extraordinaire Silver Supporter

    Posts:
    5,568
    Joined:
    Mar 27, 2003
    Location:
    Philadelphia, PA
    Wondering if anyone knows where I might find a Nashville routing drawing (depth and outline) for the route used for neck & middle pickups. Sure are tons of guitars out there with the large pickup rout. But, I've sure never seen a Stew-Mac template or a drawing anywhere.

  2. Jun 29, 2012 #2
    slowpinky

    slowpinky Tele-Afflicted

    Posts:
    1,957
    Joined:
    Jul 24, 2009
    Location:
    Melbourne ,Australia
    Personally - with teles and strats - it would be so much easier - both in terms of pick up choice/configuration and wiring , if 'swimming pool' routing was standard - on fender and imported bodies - re routing for pickups is a headache. I had to re - rout an MIJ 62 RI for Nashville - tried the subtle approach first but fitting the middle p/u was difficult - so ended up routing it all out without a template - and albeit a bit roughly.
    Btw - if you want to put a mini HB in the neck pos. You may have to rout the neck p/u cavity a few mm closer to the neck - or cut your own pickguard.
    Good luck

  3. Jun 29, 2012 #3
    Shepherd

    Shepherd Friend of Leo's

    Posts:
    4,113
    Joined:
    Jan 17, 2008
    Location:
    Maple Ridge, Canada
    I just eye-balled it. Close enough.

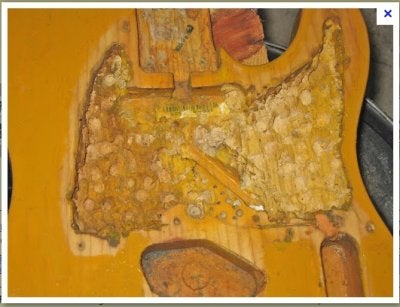

    DSC02059.jpg [​IMG]

  4. Jun 30, 2012 #4
    PJ55

    PJ55 Poster Extraordinaire Silver Supporter

    Posts:
    5,568
    Joined:
    Mar 27, 2003
    Location:
    Philadelphia, PA
    I do want to use a mini hummer in the neck slot, but would like to have the option of using the Mason configuration, also. Having a Nashville Tele, I find the standard Fender rout (that you show in the photo) to be very convenient to have. But thus far, I haven't been able to find a drawing or template for this. I suppose I can transpose it from my other guitar, using a caliper for dimensioning.

  5. Jun 30, 2012 #5
    Rob DiStefano

    Rob DiStefano Doctor of Teleocity Vendor Member

    Age:
    75
    Posts:
    10,247
    Joined:
    Mar 3, 2003
    Location:
    NJ via TX
    get a nashville pickguard - there are different placements for the middle strat pup. lay it down on yer tele body and use it as a template to trace out on the body where the middle pup goes. remove the guard and create a hole for the strat pup - any kinda hole - you drill it out with a 1" forstner bit or a wood chisel if necessary. ain't no big deal, it's just a hole that's about 3/4" deep and the pickguard will cover it. :D

  6. Jun 30, 2012 #6
    slowpinky

    slowpinky Tele-Afflicted

    Posts:
    1,957
    Joined:
    Jul 24, 2009
    Location:
    Melbourne ,Australia
    There's a good thead here about that;

    http://www.tdpri.com/forum/tele-technical/152498-modifying-pickguard-fit-mini-humbucker.html

    You can mod the nashville pickguard by using either edge of the existing neck p/u hole - but the closer you get to the neck the more likely you are to have to rout more out - so actually I fluked it and scored the pickguard from a Squier VM Nashville on eBay - which is cut just that way.

    :D like this!


    Attached Files:

  7. Jul 1, 2012 #7
    soulman969

    soulman969 Telefied Ad Free Member

    Posts:
    22,582
    Joined:
    Mar 20, 2011
    Location:
    Englewood, CO

    I'm in the process of converting a 95 MIM to a Nashville adding a Strat middle pickup. I've done just what Rob suggest here to get that basic pickup placement and etched the shape of the pickguard hole and the base plate in to the top.

    If that Tele just has a rout for a single coil neck pickup the shape and dimensions of that will accommodate a Strat pickup as well. If you create a cardboard template of that rout and center it with the etching from the pickguard you should be able to rout it with the minimum loss of body wood assuming that's your objective.

    Otherwise a bathtub rout is the simplest and easiest way to go.
