Rear loading test bed guitar

I have been wanting to try out some different pickups and control layouts, so I am building a hard tail dedicated to that. The rear access plate will allow pickup changes without loosening the strings. The pickup cavity is sized to allow P-90s, or anything smaller.

When I want to change the controls around, I will just plug the holes and re-drill. You may be able to see that I have already plugged one hole as I changed my mind about switch location.

Since this will always be a work in progress, I used no fancy wood, and I am not going for the ultimate in cosmetics. I did do my "gut cut" rear contour.
Attached Thumbnails
Click image for larger version

Name:	DSCN3028.jpg
Views:	71
Size:	32.4 KB
ID:	156642   Click image for larger version

Name:	DSCN3031.jpg
Views:	66
Size:	31.5 KB
ID:	156643   Click image for larger version

Name:	DSCN3023.jpg
Views:	55
Size:	33.5 KB
ID:	156644

Click image for larger version

Name:	DSCN3024.jpg
Views:	67
Size:	33.4 KB
ID:	156645

Pullshocks is offline   Reply With Quote

Old December 17th, 2012, 11:58 AM   #2 (permalink)
Poster Extraordinaire

guitarbuilder's Avatar

Join Date: Mar 2003
Location: Hemlock, NY
Age: 60
Posts: 9,983
Wow...that's a big swimming pool.:-). Now all you need are some Fahnestock clips...LOL.
__________________
Membership Chairman-Guild of Archaic Guitarbuilders

The Finger Lakes Institute for Incomplete Projects
guitarbuilder is online now   Reply With Quote

Old December 17th, 2012, 03:22 PM   #3 (permalink)
Friend of Leo's

whodatpat's Avatar

Join Date: Jul 2007
Location: College Park MD
Age: 42
Posts: 2,220
I am working on one like it, only mine started life as a Squire Strat. Thinking of filling in the old tremolo hole to the bridge is solid like yours. But that is a whole woodworking skill of its own.
__________________
I do all my own mistakes.
whodatpat is offline   Reply With Quote

Sponsored Links   #
Sponsored posting


Old January 14th, 2013, 10:48 AM   #4 (permalink)
TDPRI Member

Join Date: Dec 2012
Location: Seattle
Posts: 4
Almost ready for the first pickup audition -- a pair of Duncan P-Rails, with a Gibson T-top for comparison of the humbucking sounds. The P-rails have 2 pole 4 position switches for p90, parallel HB, series HB, and rail.

Body material is poplar. It has one coat of clear shellac and a couple coats of amber.
Attached Thumbnails
Click image for larger version

Name:	DSCN3035.jpg
Views:	69
Size:	48.1 KB
ID:	161266   Click image for larger version

Name:	DSCN3036.jpg
Views:	62
Size:	39.3 KB
ID:	161267   Click image for larger version

Name:	DSCN3038.jpg
Views:	76
Size:	53.7 KB
ID:	161268

Pullshocks is offline   Reply With Quote

Old January 14th, 2013, 12:19 PM   #5 (permalink)
Friend of Leo's

Join Date: May 2011
Location: Mobile, AL
Posts: 2,276
Wow...very cool idea!!
fretman_2 is offline   Reply With Quote

Old January 14th, 2013, 01:21 PM   #6 (permalink)
Tele-Meister

Join Date: Oct 2012
Location: san francisco
Posts: 124
Agree, this is a great idea. I had the idea some time ago to set up a system of connectors for pickups. Rather than soldering pickups into the wiring harness, you could plug them in. THe biggest hurdle would be getting a jack that would fit through the channel pickup route and the control cavity.
soggybag is offline   Reply With Quote

Old January 14th, 2013, 01:49 PM   #7 (permalink)
Poster Extraordinaire

crazydave911's Avatar

Join Date: Feb 2010
Location: East Tennessee
Age: 55
Posts: 7,495
Quote:
Originally Posted by whodatpat View Post
Thinking of filling in the old tremolo hole to the bridge is solid like yours. But that is a whole woodworking skill of its own.
I've done it..............this from Guitar Parts Resource is a steal at 20$..............trust me


__________________
"No trees were harmed in the creation of this message, however some electrons were temporarily inconvenienced."

My Facebook
crazydave911 is offline   Reply With Quote

Old January 14th, 2013, 02:08 PM   #8 (permalink)
Friend of Leo's

whodatpat's Avatar

Join Date: Jul 2007
Location: College Park MD
Age: 42
Posts: 2,220
Pullshocks, that thing looks great. I wish I had thought of your cheap ferrel idea. Thats just too simple for me to come up with. I was imagining ways to turn my drill into a laith to make them and gave up and bought the normal ones.

I really like your Pickup mount. That is slick. Have you made them to pop in for Tele and Strat allignments?


Quote:
Originally Posted by crazydave911 View Post
I've done it..............this from Guitar Parts Resource is a steal at 20$..............trust me


Yes, that would have been a LOT easier.
__________________
I do all my own mistakes.
whodatpat is offline   Reply With Quote

Old January 14th, 2013, 08:58 PM   #9 (permalink)
Tele-Meister

Join Date: Sep 2011
Location: orlando
Posts: 334
sean over at scarred guitars had an interesting take.

hard tail "strat" he chambered all the way around the top but left 1/4" rim. then created sinme 'faux' tops he could screw in w/ 9 screws and swap out pups with the tops

interesting idea, i dont know that he went to production w/ them, created a 1/2 dozen at least
mindwave is offline   Reply With Quote

Old January 14th, 2013, 09:09 PM   #10 (permalink)
Poster Extraordinaire

guitarbuilder's Avatar

Join Date: Mar 2003
Location: Hemlock, NY
Age: 60
Posts: 9,983

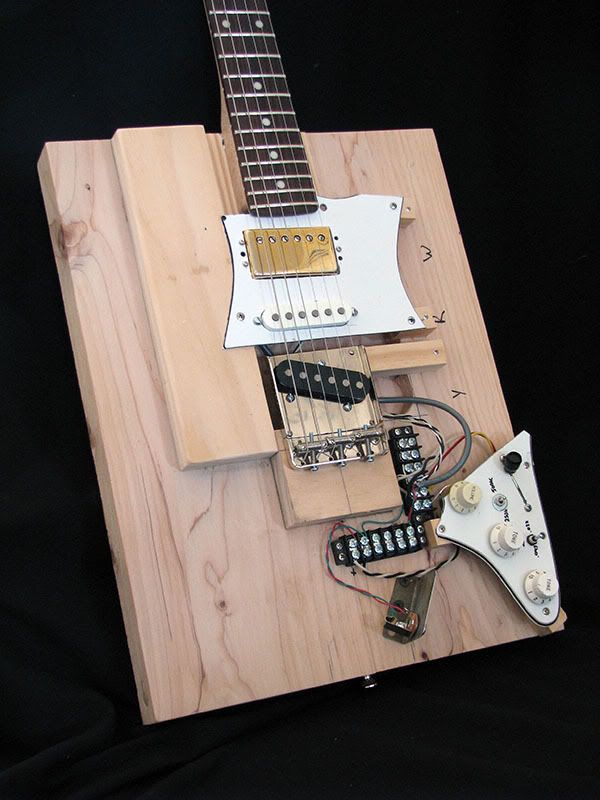

I built this one this past summer. Works great and pretty much the same idea.
__________________
Membership Chairman-Guild of Archaic Guitarbuilders

The Finger Lakes Institute for Incomplete Projects
guitarbuilder is online now   Reply With Quote

Old January 14th, 2013, 10:27 PM   #11 (permalink)
TDPRI Member

Join Date: Dec 2012
Location: Seattle
Posts: 4
Quote:
Originally Posted by guitarbuilder View Post
I built this one this past summer. Works great and pretty much the same idea.
It is definitely an idea others have thought of too. There was a shop in town that had a similar rig on display.

Here is my question for Guitarbuilder: Do you think the test guitar gives a good idea of how the pickup sounds in other guitars?
Pullshocks is offline   Reply With Quote

Old January 14th, 2013, 10:37 PM   #12 (permalink)
Friend of Leo's

Bentley's Avatar

Join Date: Jul 2012
Location: Kelowna B.C, Canada
Age: 17
Posts: 4,064
I like the jack!
__________________
"Johnny says he's bound
By only six strings to this world"
Bentley is offline   Reply With Quote

Old January 15th, 2013, 07:08 AM   #13 (permalink)
Poster Extraordinaire

guitarbuilder's Avatar

Join Date: Mar 2003
Location: Hemlock, NY
Age: 60
Posts: 9,983
Quote:
Originally Posted by Pullshocks View Post
It is definitely an idea others have thought of too. There was a shop in town that had a similar rig on display.

Here is my question for Guitarbuilder: Do you think the test guitar gives a good idea of how the pickup sounds in other guitars?
I don't know yet...I haven't put the pickups in any guitar yet... I gave most of them away to friends and the two humbuckers I made during that winding session are still in the guitar..... I would guess that the isolation of the pickups from the surrounding body have an impact on the sound somewhat but like everything on an electric guitar, all elements contribute to the end result, not just the pickups.
__________________
Membership Chairman-Guild of Archaic Guitarbuilders

The Finger Lakes Institute for Incomplete Projects
guitarbuilder is online now   Reply With Quote

Old January 15th, 2013, 08:14 AM   #14 (permalink)
Poster Extraordinaire

Join Date: Jul 2005
Location: Chicago 'Burbs
Age: 59
Posts: 6,920

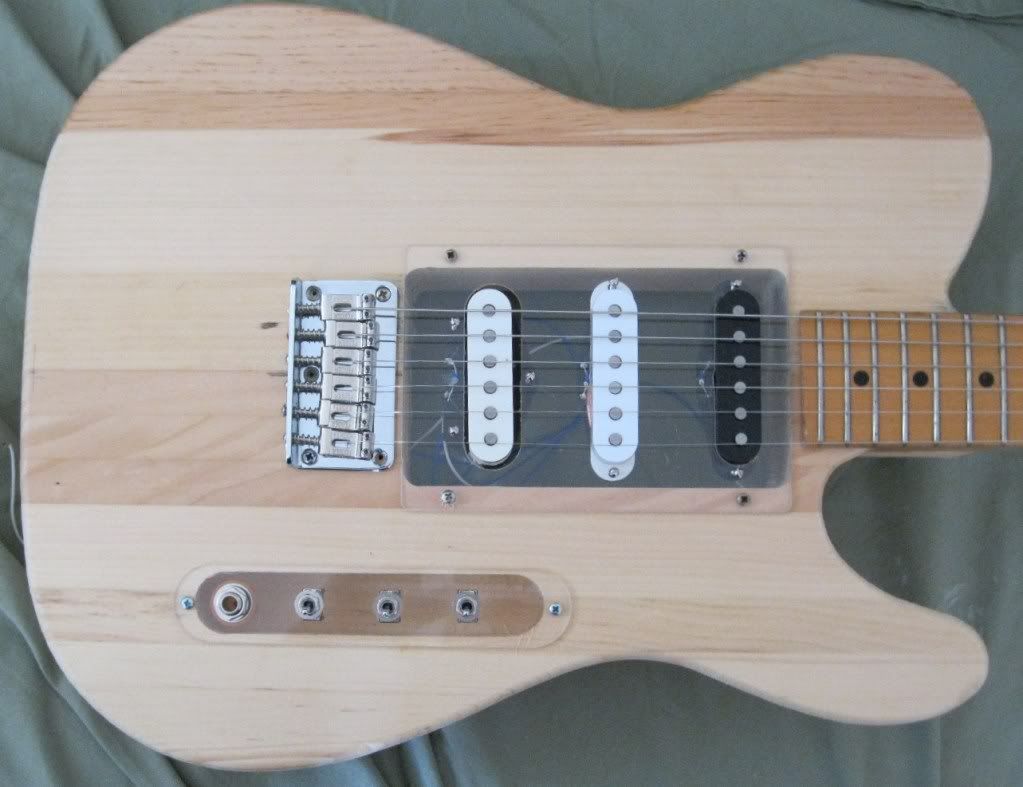

Nice! We built a pickup mule several years ago which worked out quite well- any combination goes in and out easily- not as sexy as these, though. LOL







__________________
When I grow up, I'm gonna be just like me.
Rich Rice is offline   Reply With Quote

Old January 15th, 2013, 08:24 AM   #15 (permalink)
Tele-Holic

Jefe's Avatar

Join Date: Jun 2004
Location: Wallingford, CT
Age: 44
Posts: 896
Quote:
Originally Posted by Rich Rice View Post
Nice! We built a pickup mule several years ago which worked out quite well- any combination goes in and out easily- not as sexy as these, though. LOL


I love it!
Jefe is offline   Reply With Quote

Old January 15th, 2013, 10:39 PM   #16 (permalink)
Tele-Meister

Join Date: Sep 2011
Location: orlando
Posts: 334
Quote:
Originally Posted by guitarbuilder View Post
I built this one this past summer. Works great and pretty much the same idea.
I like that a LOT

aWHOLE LOT
mindwave is offline   Reply With Quote

Old January 15th, 2013, 10:41 PM   #17 (permalink)
Tele-Meister

Join Date: Sep 2011
Location: orlando
Posts: 334
Quote:
Originally Posted by Jefe View Post
I love it!
dude you better patent that bad boy NOW
mindwave is offline   Reply With Quote

Old February 8th, 2014, 01:58 PM   #18 (permalink)
TDPRI Member

Join Date: Dec 2012
Location: Seattle
Posts: 4
Discovered the key to fast pickup changes is to glue the springs to the pickguard, or use rubber tubing instead of springs. This way the springs don't go flying when you reach for the screw driver

Added a terminal block for solderless connection of the pickup wire

Up now is a set of noiseless single coils with a couple of real Fender pickups for reference. Needless to say there is a lot of magnetic pull on the plain G. Neck pickup location is +/- stock, but I had to mess with the spacing to get all 5 pickups to fit.
Attached Thumbnails
Click image for larger version

Name:	DSCN3310.jpg
Views:	18
Size:	49.1 KB
ID:	219165   Click image for larger version

Name:	DSCN3312.jpg
Views:	26
Size:	55.9 KB
ID:	219166   Click image for larger version

Name:	DSCN3311.jpg
Views:	22
Size:	47.9 KB
ID:	219167

Click image for larger version

Name:	DSCN3313.jpg
Views:	37
Size:	57.6 KB
ID:	219168
Pullshocks is offline   Reply With Quote

Old February 8th, 2014, 02:12 PM   #19 (permalink)
Poster Extraordinaire

Barncaster's Avatar

Join Date: Feb 2010
Location: Santa Rosa, CA
Age: 49
Posts: 5,879
A guitar after my own heart. Well done. I can definitely see how sustain would be an issue here! ;-)

Rob
Barncaster is offline   Reply With Quote

Old February 8th, 2014, 09:15 PM   #20 (permalink)
Tele-Afflicted

Join Date: Jul 2012
Location: Wilmington, MA
Posts: 1,597
Wow, I was thinking of building something similar now that the winder is nearly done. I think I saw some ideas to steal. great thread!
__________________
The best music is essentially there to provide you something to face the world with.
-- B. Springsteen

Chris S.
