skinner · April 8th, 2011, 07:12 PM

I couldn't find one of these on here already, so how about it? Anyone got amp guts pics? I'll start with the venerable 5F1.

chippertheripper · April 8th, 2011, 07:25 PM

5b1:

Jack Knife · April 8th, 2011, 07:39 PM

Does it have to be a production amp?

Here's a Heathkit tube audio amp converted to guitar duty in a PR repro chassis.

Started off like this. I would have kept it like this but my customer wanted it in a regular guitar amp chassis.

Next, a Sundown amp's clean channel converted to tagboard due to a buggered PCB.

skinner · April 8th, 2011, 07:58 PM

Quote:

Originally Posted by Jack Knife

Does it have to be a production amp?

Nope. Glad to see we're getting started with tube non-PCB stuff. Here's another: Dr. Z Carmen Ghia.

keithb7 · April 8th, 2011, 08:33 PM

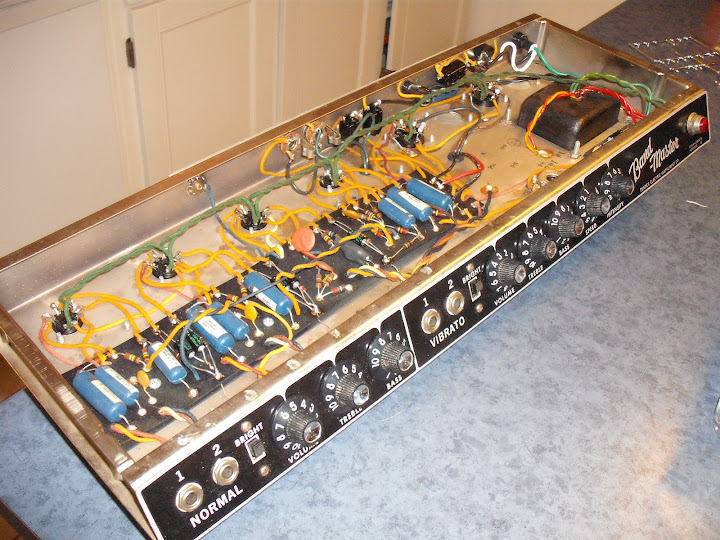

64 Bandmaster AB763

68 VibroChamp:

eugenedunn · April 8th, 2011, 09:18 PM

1946 Fender "Woodie" post re-cap job......

eugenedunn · April 8th, 2011, 09:24 PM

Before and after extensive circuit modifications for reliability and to reduce hum and parasitic oscillations

eugenedunn · April 8th, 2011, 09:26 PM

EICO 667 Dynamic Conductance Tube and Transistor Tester

eugenedunn · April 8th, 2011, 09:43 PM

1962 Telefunken AM FM Shortwave Tube Radio with tube FM Stereo Multiplex unit....... it works!

Juantelemera · April 8th, 2011, 10:00 PM

Fender blues jr., tweed special edition.

Dan German · April 8th, 2011, 10:27 PM

My Princeton Reverb II (I often use the close-up of the tubes and transformers as my computer desktop):

DOGMA Dunn · April 8th, 2011, 10:44 PM

Almost an amp innards. Still needs the hand wiring.

jtmdes · April 8th, 2011, 11:15 PM

Early 59 Gibson GA-20

slider313 · April 8th, 2011, 11:18 PM

'61 brown Vibrolux................................

rirakuma · April 8th, 2011, 11:23 PM

Weber 6A20

fstempleton · April 8th, 2011, 11:25 PM

Day 1 of building a 5E3.

fstempleton · April 8th, 2011, 11:30 PM

Day 2 of 5E3.

pchilson · April 9th, 2011, 12:00 AM

'58 Ampeg M-12 Mercury

fezz parka · April 9th, 2011, 12:13 AM

Amp:

Guts:

tele salivas · April 9th, 2011, 12:26 AM

The Beast+ El Grande=key to forbidden pleasure.
